Analog Electronics Lab #5

Posted byKatherine Grace GonickPosted inUncategorized
  1. Adding a resistor and capacitor to this circuit is good because it protects the audio jack and audio system in your device from getting fried.
  2. The differences between the inverting and non-inverting amplifiers on the oscilloscope is that the inverting amplifier shows a wave that’s inverted and that goes to 0 when turned all the way down on the potentiometer.

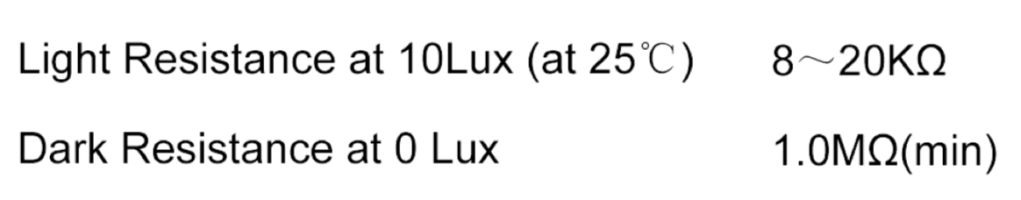

Here is the light and dark resistance for the photocell
